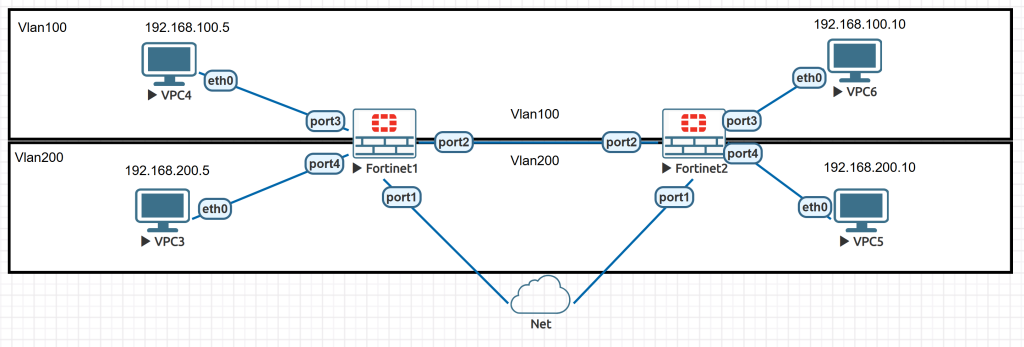

Topology
Configure your Trunk(Tagged) Ports for each VLAN on Port2 (I know the picture says port 1 its bcs MGMT)

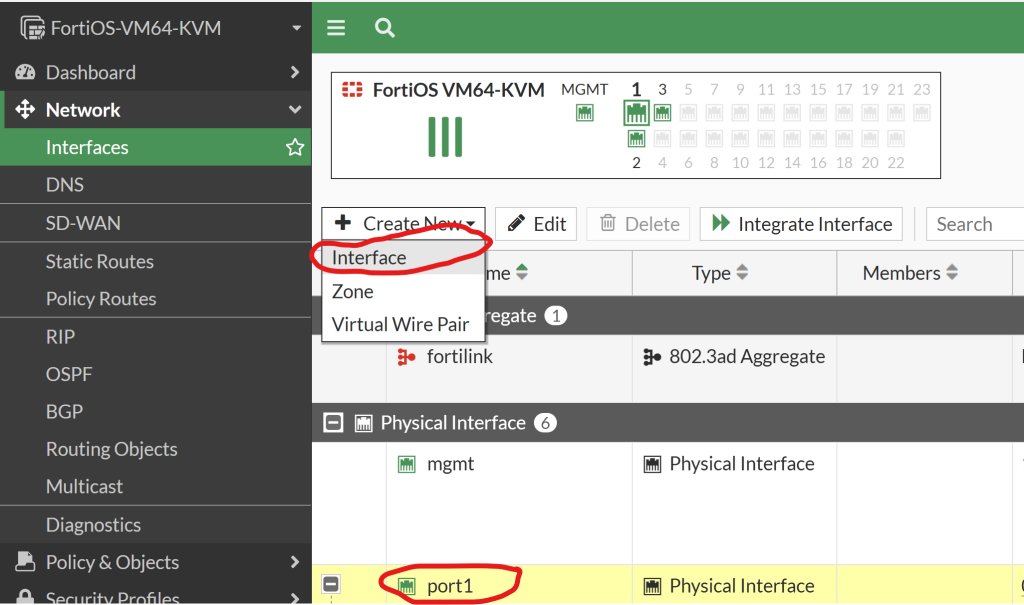

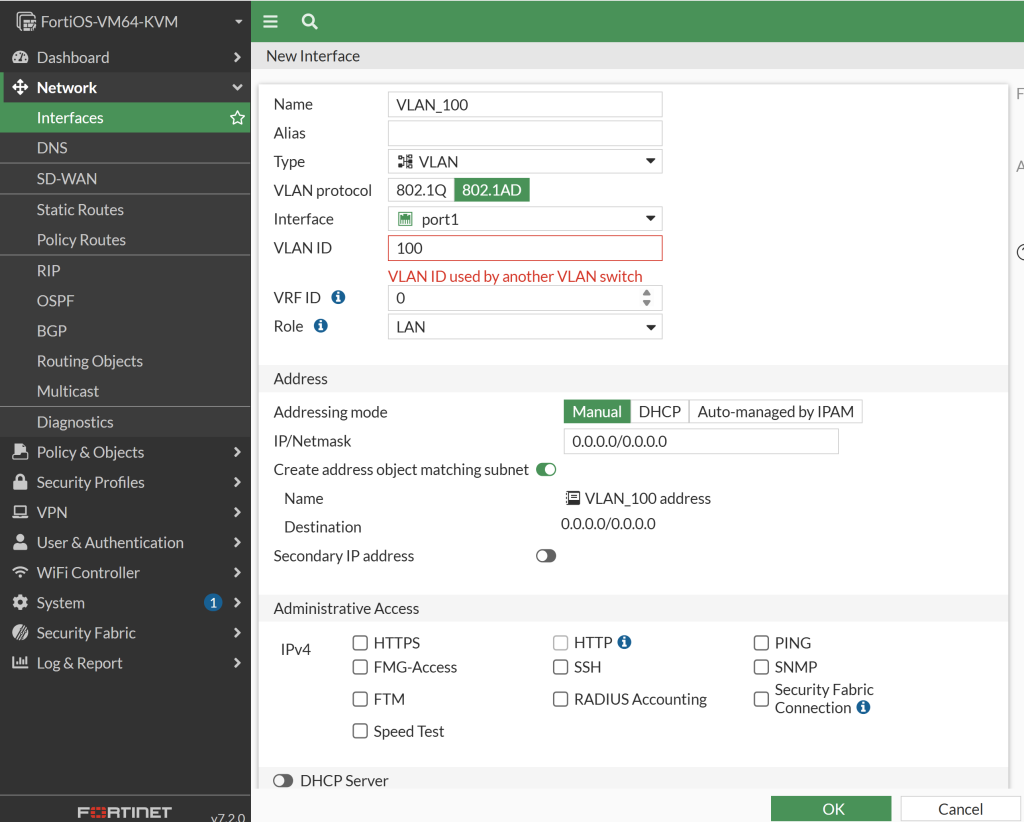

Create your 1st VLAN for the Trunk
Create your 2nd VLAN for the Trunk
Create your two Access VLAN Ports for the two Physical ports

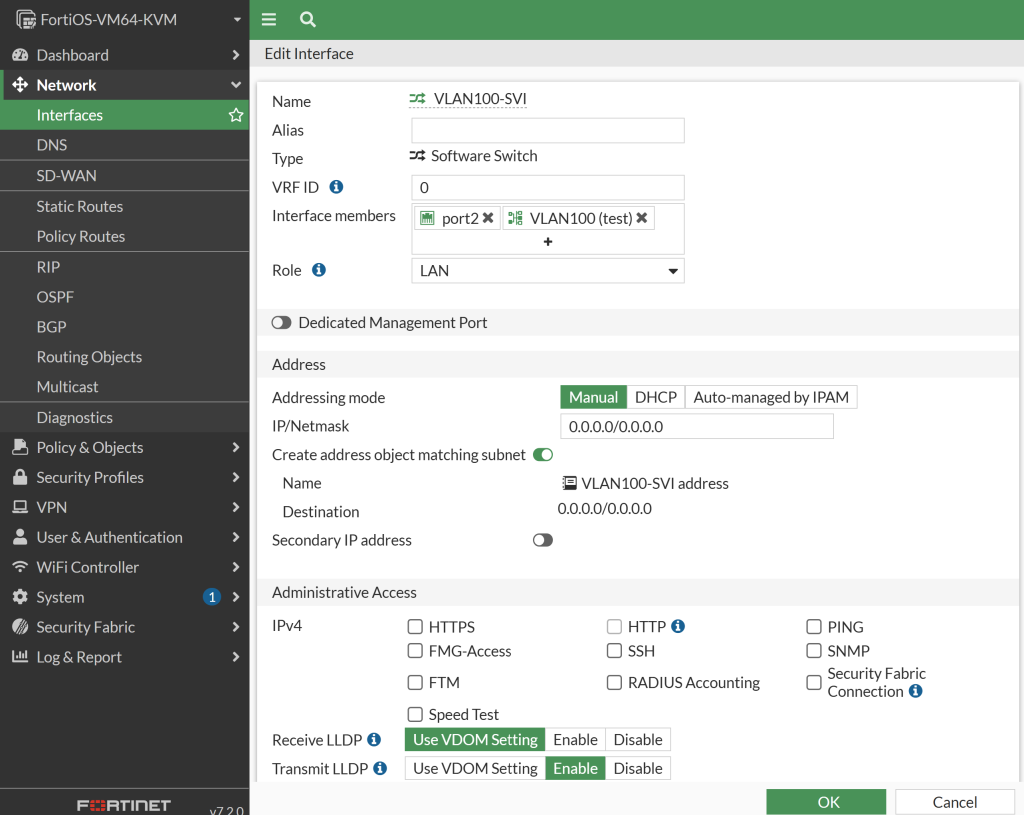

Create your Software Switch For VLAN100. Select the Access port from step 2 and the AD VLAN from step1.

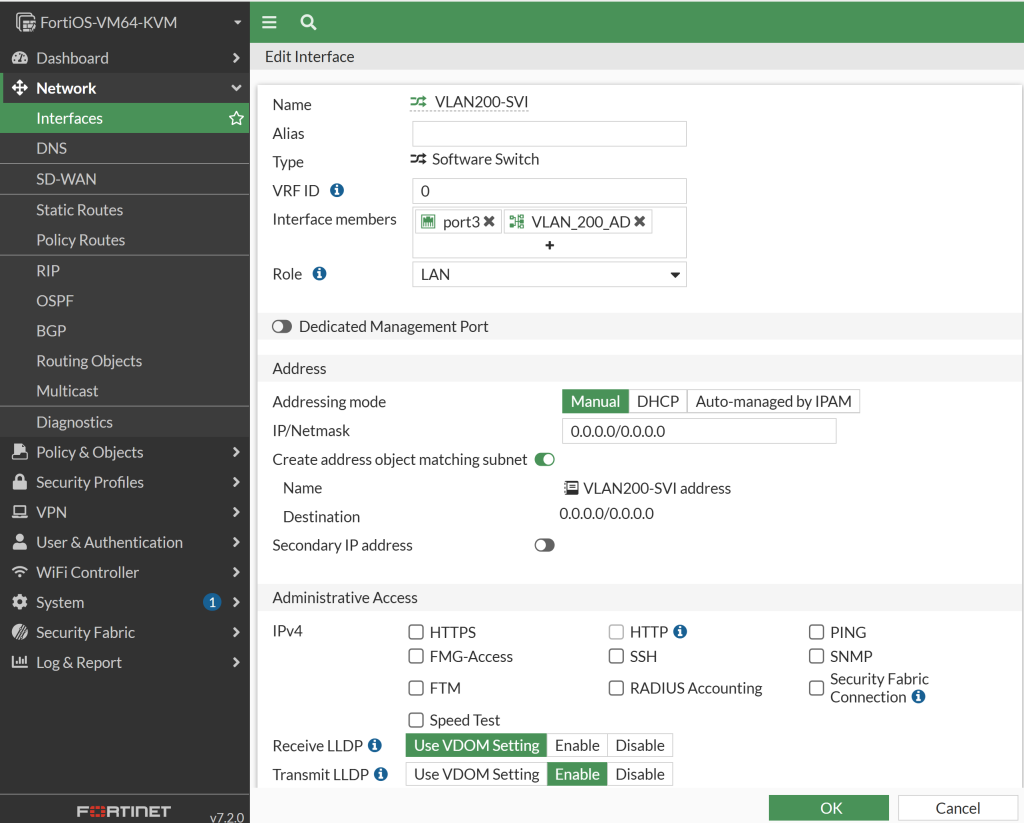

Create your Software Switch For VLAN200. Select the Access port from step 2 and the AD VLAN from step1.
